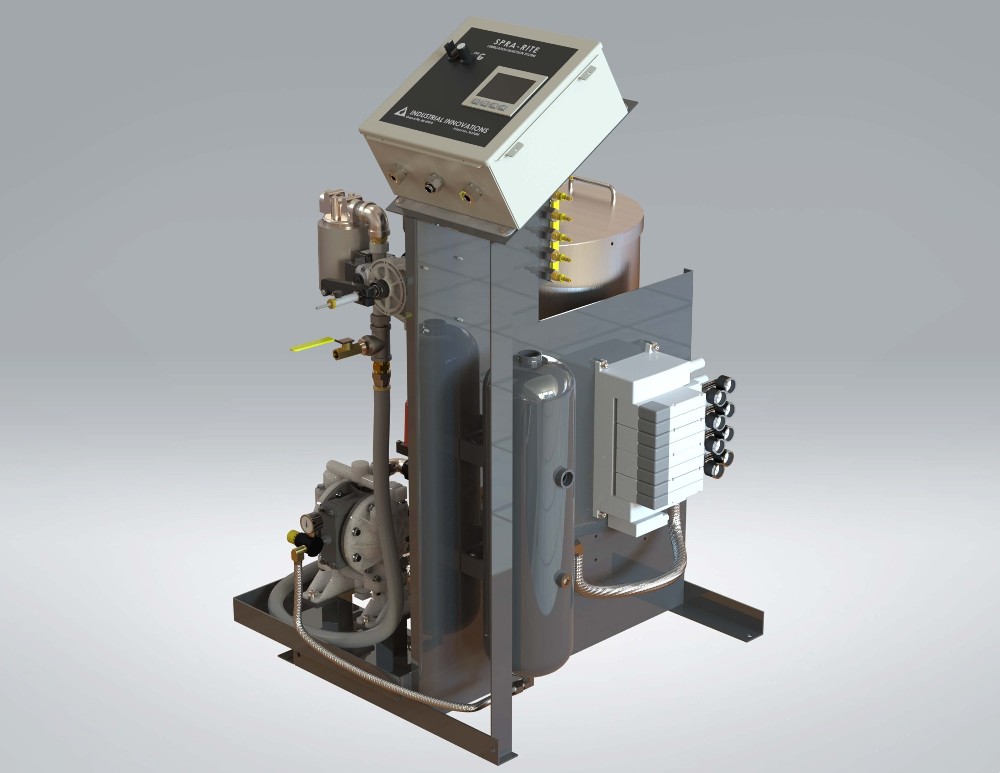

SPRA-RITE™ Portable Mix & Spray System
PROPORTIONAL MIXING & SPRAY APPLICATION FOR GRAPHITE LUBRICATIONThe Spra-Rite™ GT is a turnkey portable graphite lubrication solution that ensures stable, homogenous graphite lubricant mixes combined with built-in delivery for application of a fine atomized lubricant, with full HMI controls.
This portable lubrication mixing and spraying system first mixes the graphite lubricant using our positive displacement proportional dosing pump and stored in the holding tank that includes auto-refilling and shut-off. The lube is then atomized with air into an ultra-fine spray at the nozzles which are independently controlled with each injector. The portable spray system can store up to 200 spray recipes through our PLC driven-HMI controlled Beta-Plus electronic controls package, typically used with lubricants of ultra-high viscosity (>600<800cps). The SPRA-RITE™ GT system includes a mixing system, injector manifold, controls package, and tank (nozzles and tubing sold separately). The system can also be outfitted for non-graphitic lubricants.
Portable Lubrication System Features
Mixing:
- Accurate and adjustable proportional dosing pump
- IFM Effector liquid sensor for auto-refilling and water shut-off
- Low level audible alarm light
- Electric actuated ball valve for refill
- 30 gallon round stainless-steel holding tank for mixed lubricant
- Electric motor for 60 rpm mixing paddle for proper graphite suspension
Application:
- Standard 8 injector manifold with capacity up to 48
- 37 gallons per minute diaphragm pump
- Pressure regulators and gauges for fully adjustable flow control
- PLC driven-HMI controlled, Beta-Plus electronic controls package includes 8k memory
- 200 programmable storage recipes
- Binary capable for communication to press controls
- Independent skip cycle counting, delay spray, and volume control
- Operator lock-out capability
- Programmable water PURGE cycle cleans mixing pump, injectors and nozzles
- High Pressure Ultra Lube nozzles with heavy-duty magnetic base
- Spray either flat or cone pattern
- Fire resistant hoses
- Pedestal style designs for portability
